CPSL series
Side-load case packer

Horizontal case packers series CPSL is Senzani solution for American case (RCS case) side-load filling. The concept, sticking to simplicity as an essential feature, makes use of cutting-edge technologies to provide a machine selection offering both the highest speed and greatest reliability in the sector.

The perfect case squareness relies on electromechanical or brushless driven devices to ensure precision and positive case opening. The cases are then kept in shape in the transfer phases to the filling area thanks to the transport chains and catenaries specific design.

In the product build-up and case configuration preparation, the greatest care is devoted to the single units integrity, to prevent all possible damage to the product shape or graphics. When necessary, Senzani integrates product rotation or tilting systems to always meet the demand for flexibility and adaptability to all configuration types.

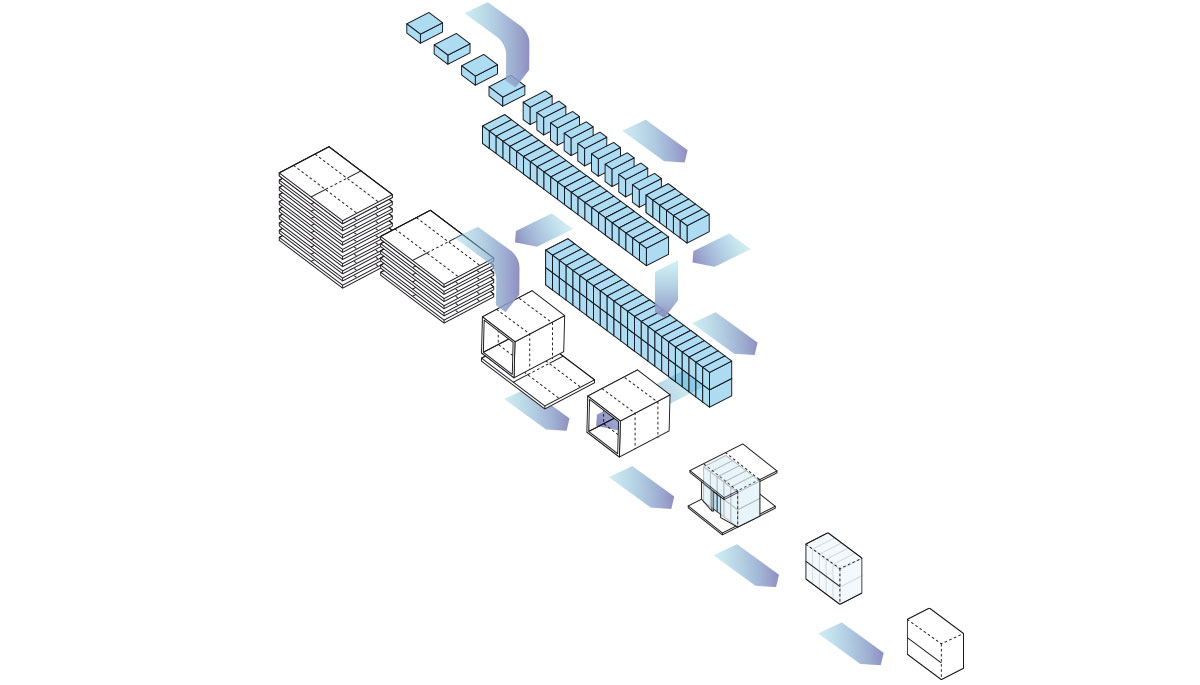

A dedicated station, fitted with a vertical movement (rising or descending), forms the product stacking, while a pushing device proceeds to the case filling. The device can be either mechanical or servo-assisted and is fitted with a pneumatic hopper to favour the product insertion in the case, avoiding stumbling blocks.

Format change operations are made quick and easy thanks to the tool-free technology and the use of modern techniques to simplify the adjustments. The programs selection goes through an extremely intuitive operator interface and a dedicated tutorial to guide the operator step by step is also available, in order to avoid errors.

High speed production, one of Senzani’s specialties, is ensured thanks to multiple stations for product transfer, case set-up and sealing. All equipment movements are simultaneous and perfectly synchronised, with integrated management from operator panel.

The selection of components aims at ensuring great reliability all along the machine lifecycle.

The design phase focusses on the research for modern and innovative solutions also in terms of energy-efficiency, wear-resistance and top-quality components.

All machines are assembled and tested by specialised technicians before delivery, thus remarkably reducing the installation duration.

Case packers CPSL series
MODELS

mod. max speed cpm case size min case size max
CPSL6 6 350x210x240 550X300X600
CPSL12 12 300x200x450 450x300x450
CPSL20 20 300x200x450 450x300x450
CPSL25 25 300x200x450 450x300x450

Main features:

  • Products to case pack: cartons, tubs, tetra bricks, bags and more
  • Production speed up to 25 cases/min
  • Compact footprint (product infeed module and case handling module), space-saving and user-friendly
  • Closing systems with self-adhesive tape or hot-melt glue available
  • Horizontal or vertical case magazine, ergonomic and suitable for a wide range of formats with different grammages
  • Completely electronic machines with brushless motors
  • Total flexibility according to different formats and configurations
  • Tool-free technology for format change adjustments
  • Solid design, certified components, low-maintenance
  • Specific engineering of all elements to ensure 100% product compliance
  • User-friendly and easy programming
  • Non-compliant products rejection system with automatic control
  • Great accessibility to all components
  • Bearings life-long lubrication, centralized lubrication system available on request
  • Low energy-demanding
  • All PLC platforms are available (Siemens, Allen Bradley, Schneider)
