Leading manufacturer of vertical
cartoners for over 60 years

We are specialised in the manufacture of innovative packaging systems to set-up cardboard cartons, proceed to the filling with the product (loose or pre-packed) by vertical fall and final sealing. A high degree of customisation and our wide range of machinery to ensure different production speeds, flexibility in layout design and cartons handling (in terms of shape, dimensions, dosing and closing system) make our solutions always suitable to meet any need.

We also manufacture automatic cartoning machines from flat blank, specifically designed to set-up, fill and seal trays and displays: the ideal solution to handle a wide range of products as bags, tubs, tins and cans, tubes, coffee capsules. We can rely on two different technologies (form-and-fill and wrap-around) to match our Customers’ specific projects and handle the products both in vertical and horizontal configuration.

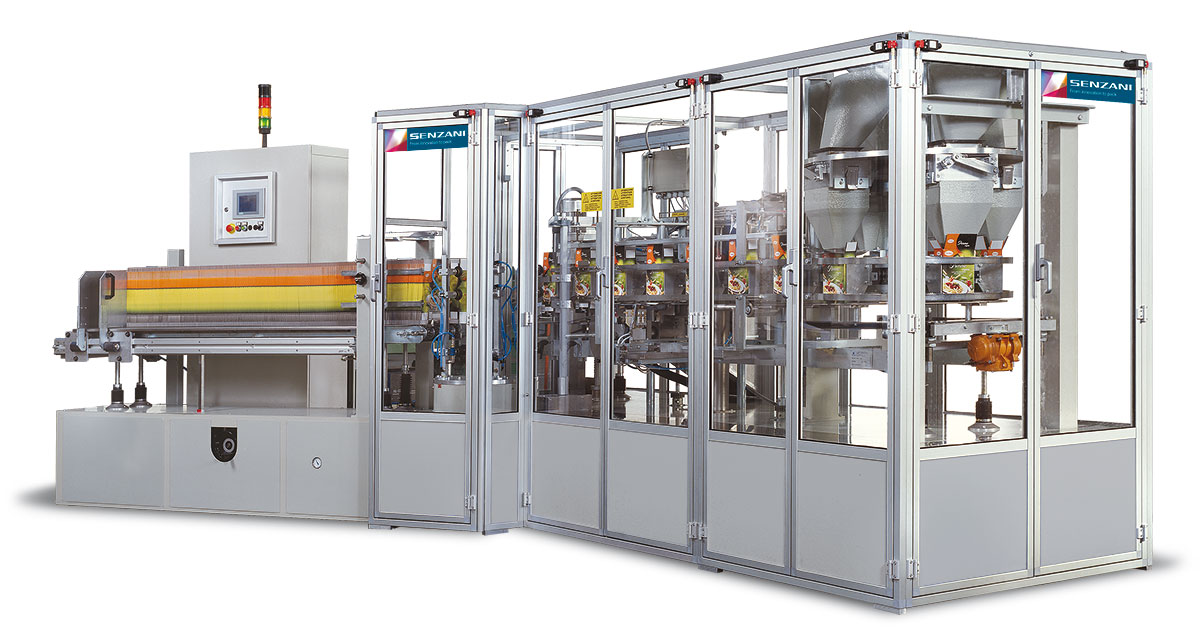

VCM
Vertical cartoner with continuous motion

Senzani cartoners VCM series is the ideal solution for the Customers aiming at combining low/average production speed with cutting-edge technology.

carton size
min. 60 x 30 x 140 H mm.
max. 180 x 80 x 330 H mm.

speed
max. 150 carton per min.

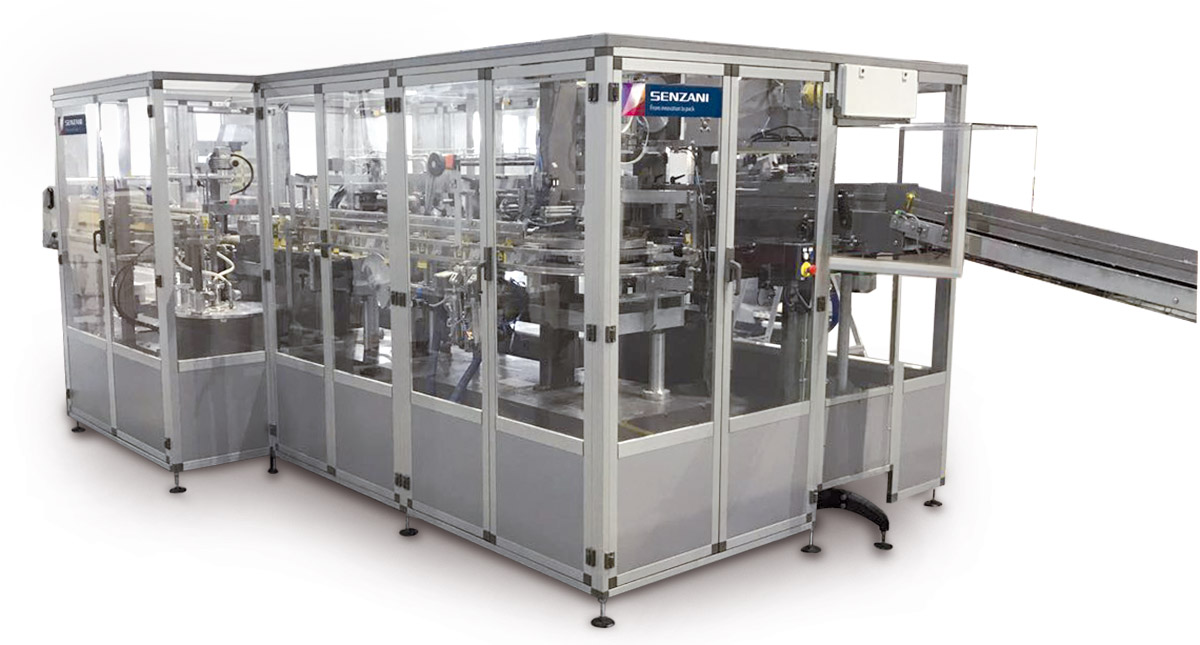

VCMA
Vertical cartoner with index motion

Senzani VCMA cartoners series works in index motion. This series is the solution for vertical cartoning of solid products (pre-filled bags, coffee capsules, bottles), granulated products (seeds, detergent powder) or individually packed products (candies, chocolates, bars), at reduced working speed and with single or double filling station.

carton size
min. 90x40x140 H mm.
max. 220x100x370 H mm.

speed
max. 60 carton per min.

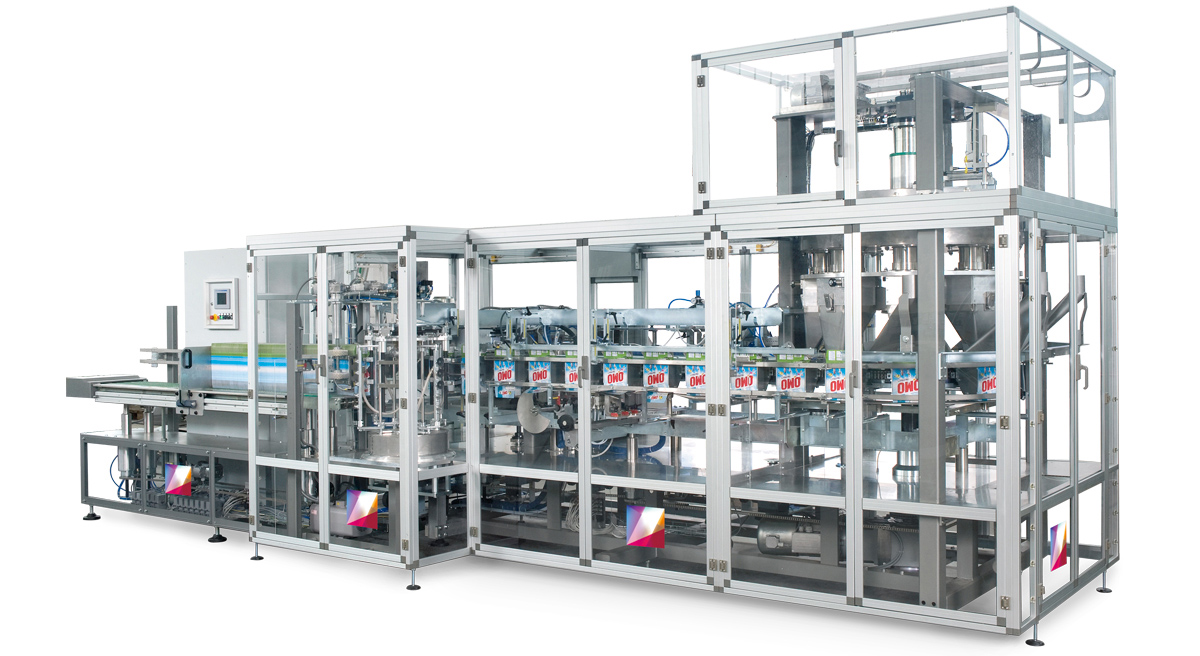

VCMX
Vertical cartoner with continuous motion at high speed

Senzani VCMX series meets the demands of Customers willing to preserve the greatest quality and reliability, while working at high speed and 24/7.

carton size
min. 60 x 30 x 140 H mm.
max. 285 x 145 x 390 H mm.

speed
max. 350 carton per min.

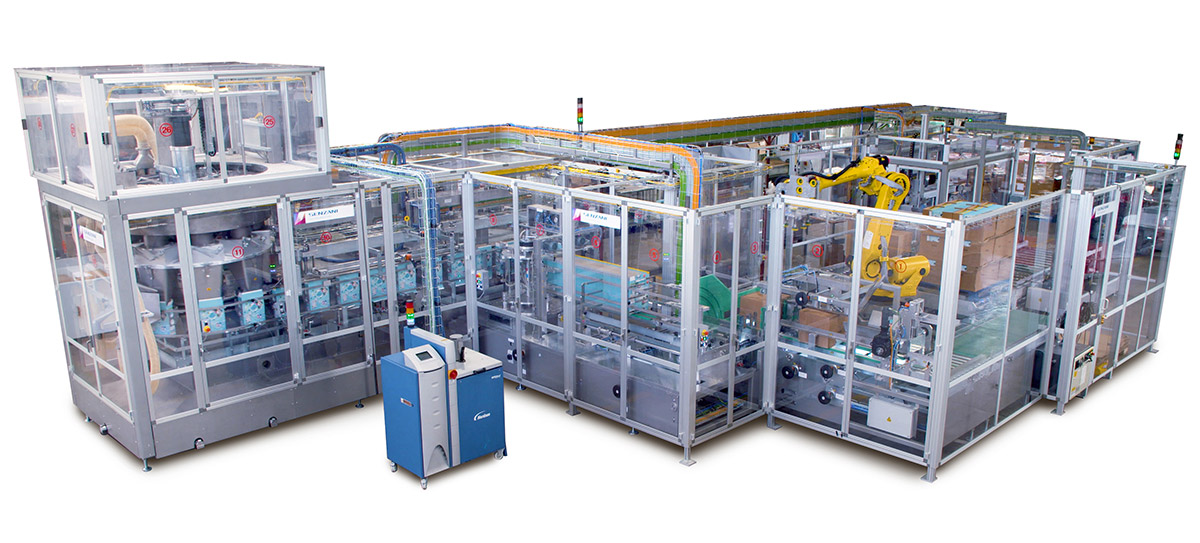

VCMK
Custom vertical cartoner

In a growingly competitive and customer-oriented market, VCMK cartoners series is Senzani’s most valuable answer: a combination of the company’s know-how and ability to listen to the Customers’ needs and to support them in their vision of the future. Senzani solutions are targeted and tailor-made, according to the demands, scopes and goals of the Customer.

speed
max. 600 carton per min.

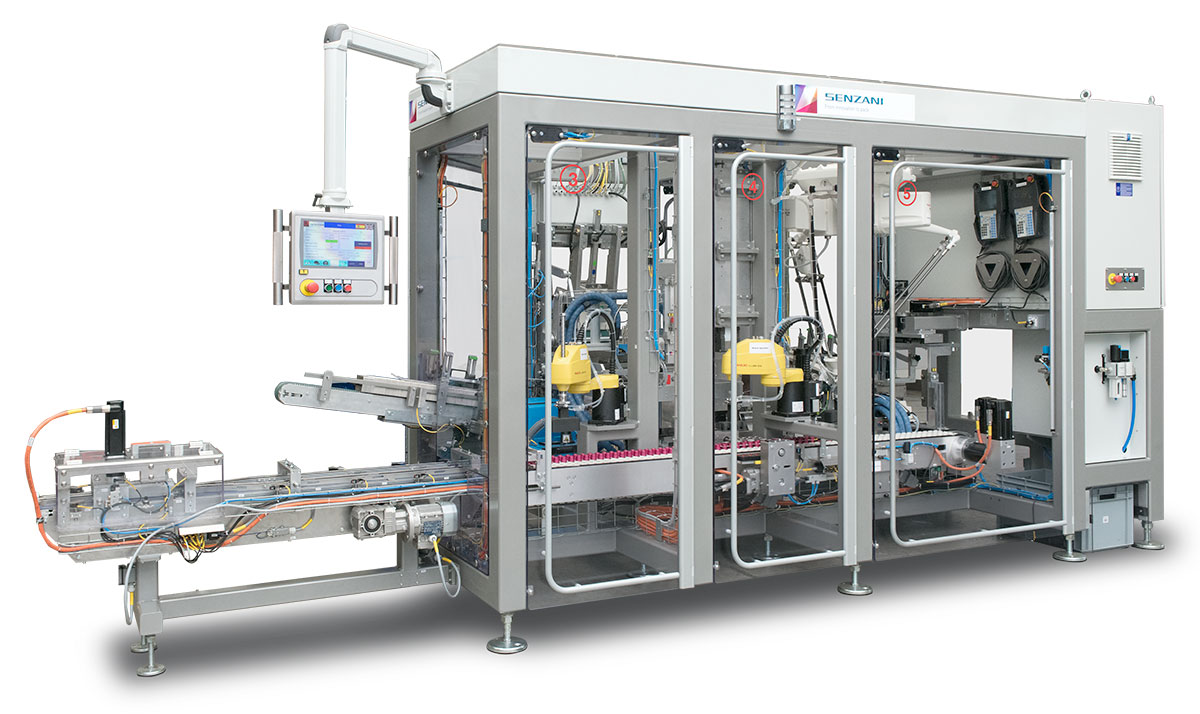

TLCM
Top-load cartoner from flat blank

TLCM series is Senzani top-load solution to fill cartons from flat blank with products in a given configuration.

carton size
max. 750 x 750 H mm.

speed
max. 600 carton per min.

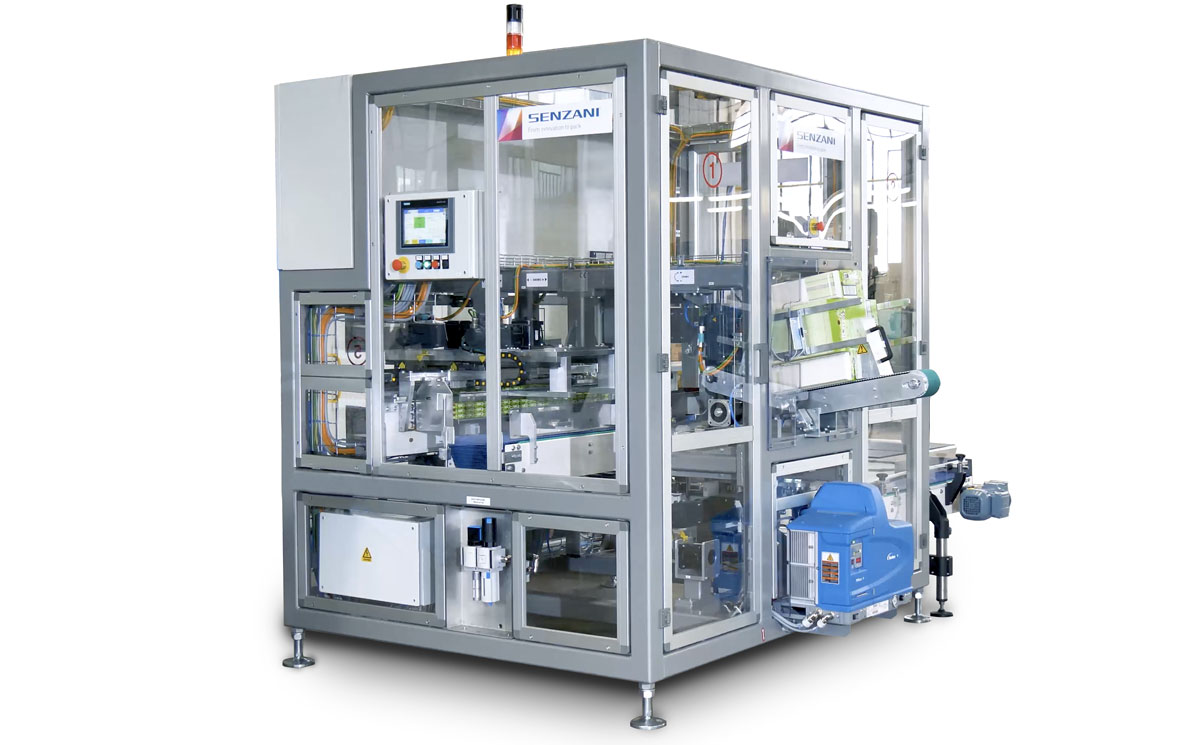

WACM
Wrap-around cartoner from flat blank

WACM series is Senzani solution to pack products in wrap-around from flat blank. It is the ideal option for Customers willing to present their products in ready-to-sell units as trays or displays.

carton size
min. 130 x 90 x 30 H mm.
max. 250 x 100 x 100 H mm.

speed
max. 1700 carton per min.

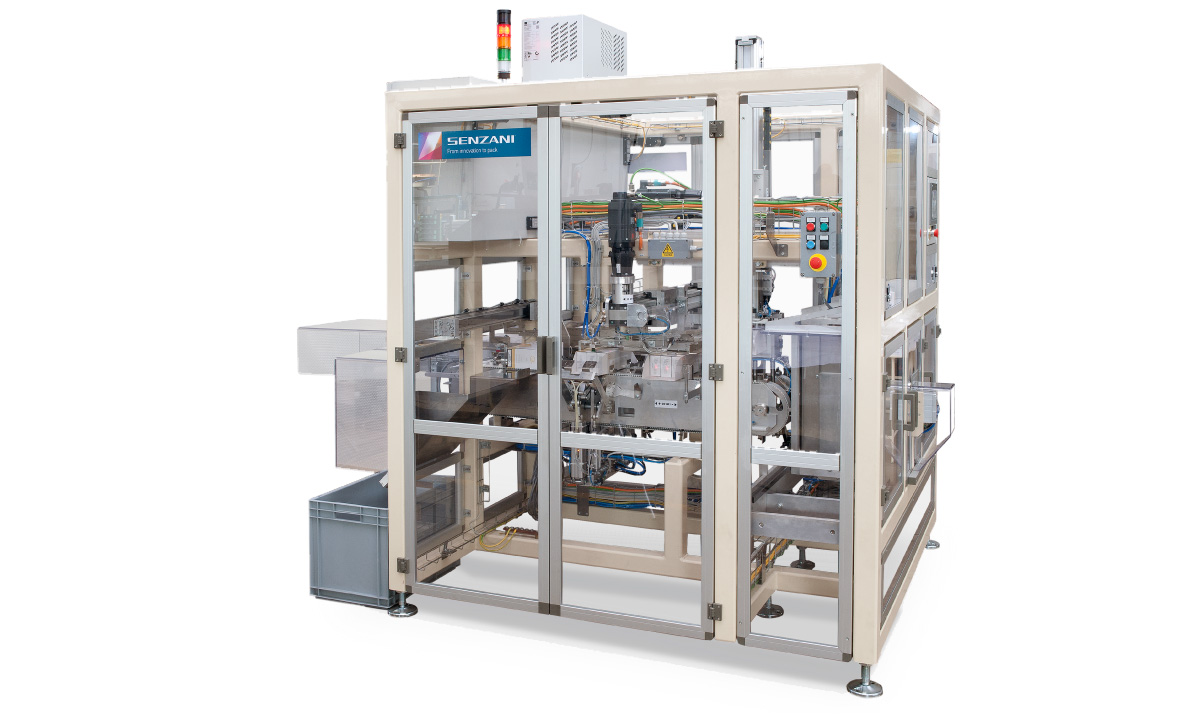

HCM
Horizontal cartoner

Senzani HCM series is the ideal solution for the horizontal filling of pre-glued cartons.

carton size
min. 60 x 30 x 140 H mm.
max. 180 x 80 x 330 H mm.

speed
max. 120 carton per min.
