HCM
HCM
Horizontal cartoning machine
IDEAL FOR:
- Medium and low production speeds
- Filling pre-glued cartons with pre-packed products
Discover the key features of our HCM horizontal cartoners:
DISCOVER ALL FEATURES
How it works
- Carton set-up, filling from the side and sealing with hot-melt glue.
Technical features:
- Speed: up to 30 cartons/minute in index motion, up to 120 cartons/minute in continuous motion
- Flexibility (carton dimensions):Min. 60 x 30 x 140 H mm – Max. 100 x 70 x 280 H mm – Possible extended flexibility upon customer request
- Suitable for: pre-packed products (sachets, cigarette bundles, etc.)
- Packaging output: cartons
- Type of closure: hot-melt glue
- Flap closure sequence: standard, reverse, tuck-in
Key benefits
- Tailored engineering based on customer requirements
- Compact footprint and easy machine operation
- Robust and ergonomic design
- High production efficiency
- Wide flexibility in carton formats and shapes
- Positive handling of the cartons during picking and set-up phases
- Perfect carton squareness
- Customized infeed system depending on the product: racetrack, accumulation systems, stackers, etc.
- Servo-driven machine; version with asynchronous motors available
- Fast, tool-free format changeover, with a color-coded system (optional)
- Availability of all PLC platforms (Siemens, Allen-Bradley, Schneider)
- User-friendly HMI
- Scalability and possibility of implementing new formats
- High-quality components
- Excellent accessibility and ergonomics for operators and maintenance personnel
- Low maintenance required
- Seamless integration with Senzani case packers and end-of-line systems, or with existing equipment
Optional features
- Integration of laser or ink-jet markers, check weighers, metal detectors, and barcode readers

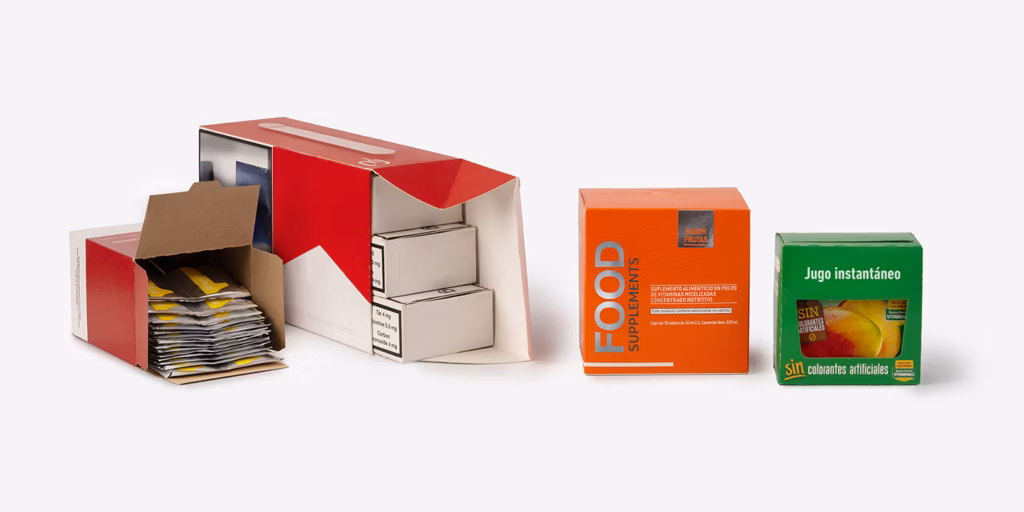

Some of the possible packaging options:
