VCMA
VCMA
Intermittent-motion vertical cartoning machine
IDEAL FOR:
- Fragile products
- Bag-in-box packaging
Discover the key features of our VCMA intermittent-motion vertical cartoners:
DISCOVER ALL FEATURES
How it works
- Carton set-up, bottom sealing, vertical filling, and top sealing.
Technical features:
- Speed: up to 90 cartons/minute in index motion
- Flexibility (carton dimensions):Min. 90 x 40 x 140 H mm – Max. 220 x 100 x 370 H mm – Possible extended flexibility upon customer request
- Suitable for: bags or loose products (capsules, flowpacks, chocolate eggs, etc.)
- Packaging output: cartons
- Type of closure: hot-melt glue
- Flap closure sequence: standard, reverse, gable-top, tuck-in
Key benefits:
- Tailored engineering based on customer requirements
- Compact footprint and easy machine operation
- Robust and ergonomic design
- High production efficiency
- Wide flexibility in carton formats and shapes
- Monobloc aluminum carton holders for perfect carton squareness
- Positive handling of the cartons during picking and set-up phases
- Customized infeed and filling system for each product type to ensure maximum integrity
- Parts in contact with the product made of stainless steel and/or food-grade
- Bag-in-box: system for inserting bulky bags into cartons that are smaller in volume than the bags themselves
- Servo-driven machine; version with asynchronous motors available
- Fast, tool-free format changeover, with a color-coded system (optional)
- Availability of all PLC platforms (Siemens, Allen-Bradley, Schneider)
- User-friendly HMI
- Scalability and possibility of implementing new formats
- High-quality components
- Excellent accessibility and ergonomics for operators and maintenance personnel
- Low maintenance required
- Seamless integration with Senzani case packers and end-of-line systems, or with existing equipment
Optional features:
- Fully washable stainless steel machine version and/or with specific components for corrosive products
- Devices for inserting sachets, gadgets, leaflets, dispensers, and similar items
- Integration of laser or ink-jet markers, check weighers, metal detectors, and barcode readers

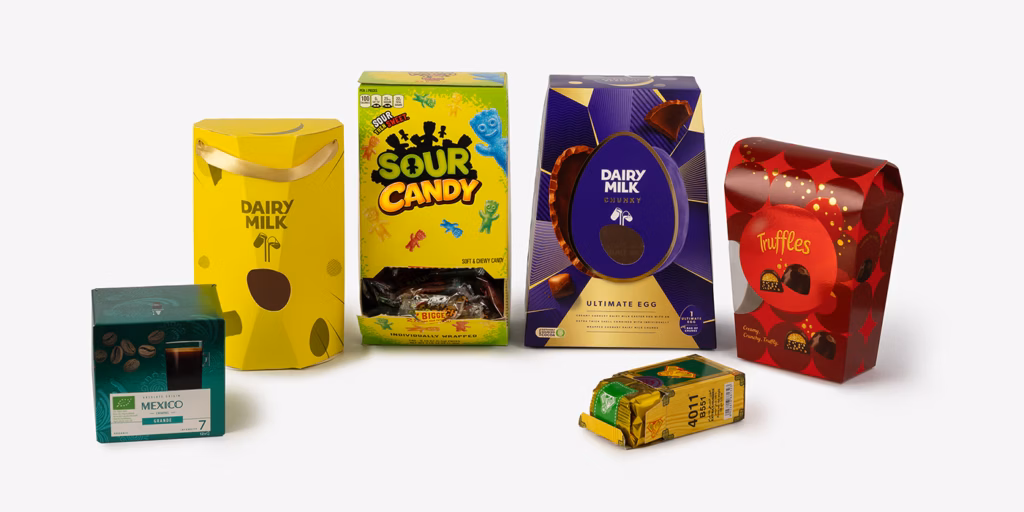

Some of the possible packaging options:
